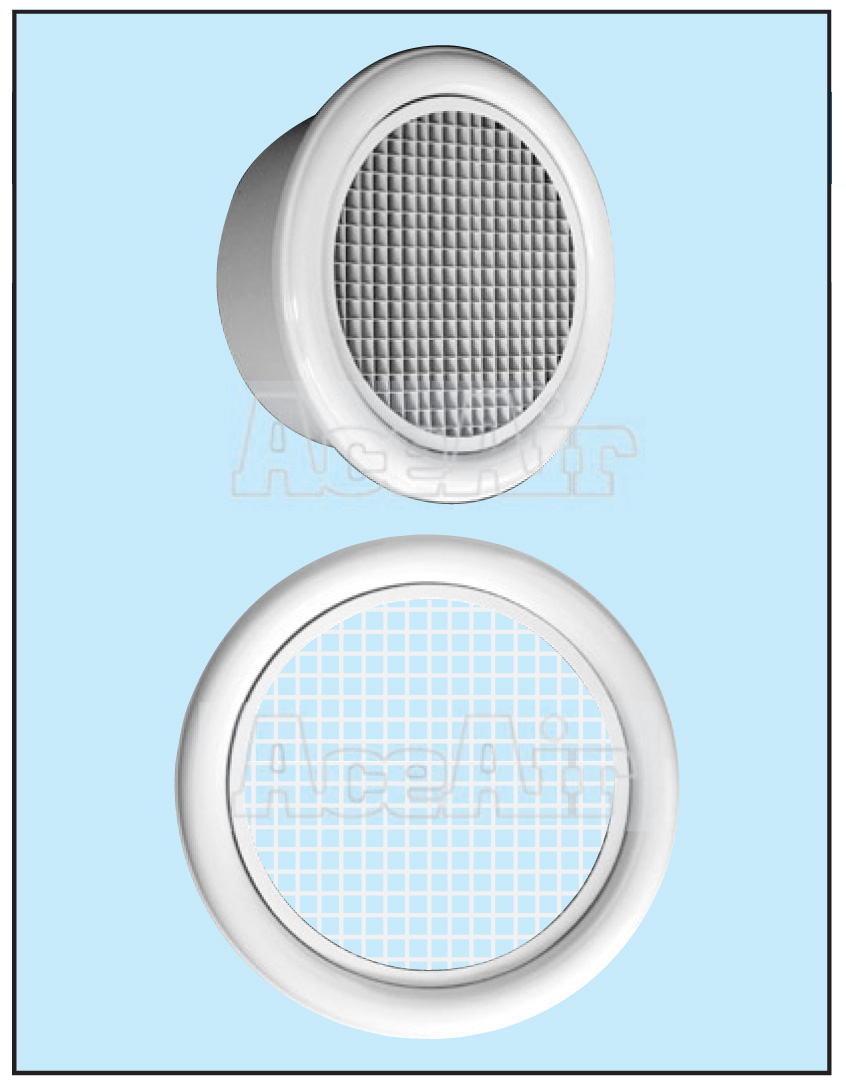

Code: REG
Name: Round Eggcrate Grille
The REG is the circular model of EG. REG can be used for an exhaust, return or supply applications with a low air resistance and low noise levels, and can be installed on a wall or mounted on ductwork.

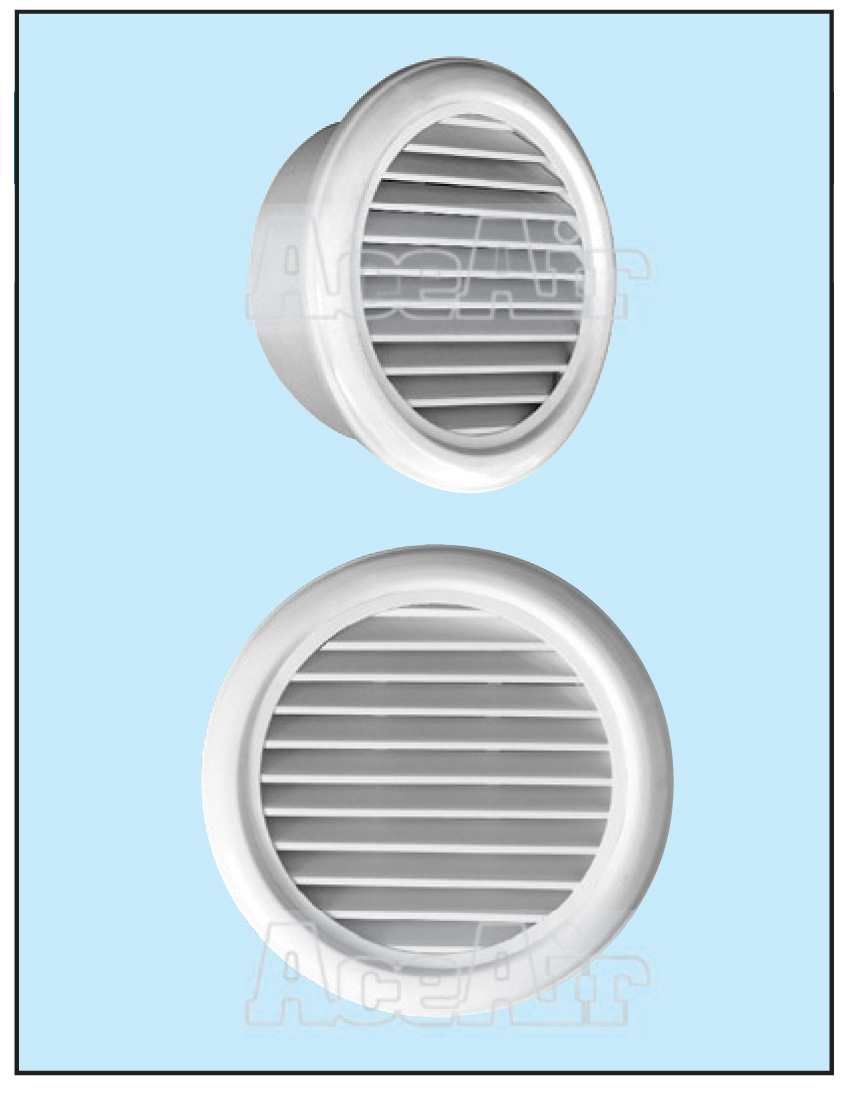

Code: RFB
Name: Round Lurve
The RFb is the circular model of the FB. Its main application is as return/exhaust air grille.


Code: RDD RSD
Name: Round Supply Air Grille
The RDD and RSD are circular model of double deflection grille. RDD and RSD are suitable for most commercial applications and can be utilized in exposed duct, ceiling or sidewall situations.

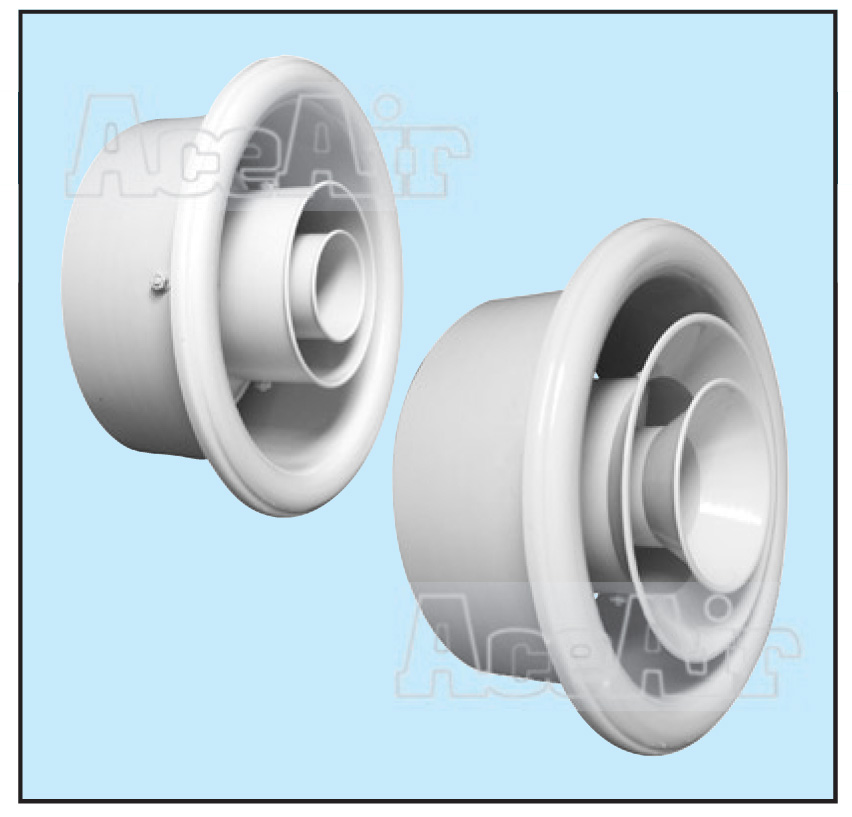

Code: TRS
Name: Jet Diffuser
The TRS jet diffuser is designed for high volume long throw applications.

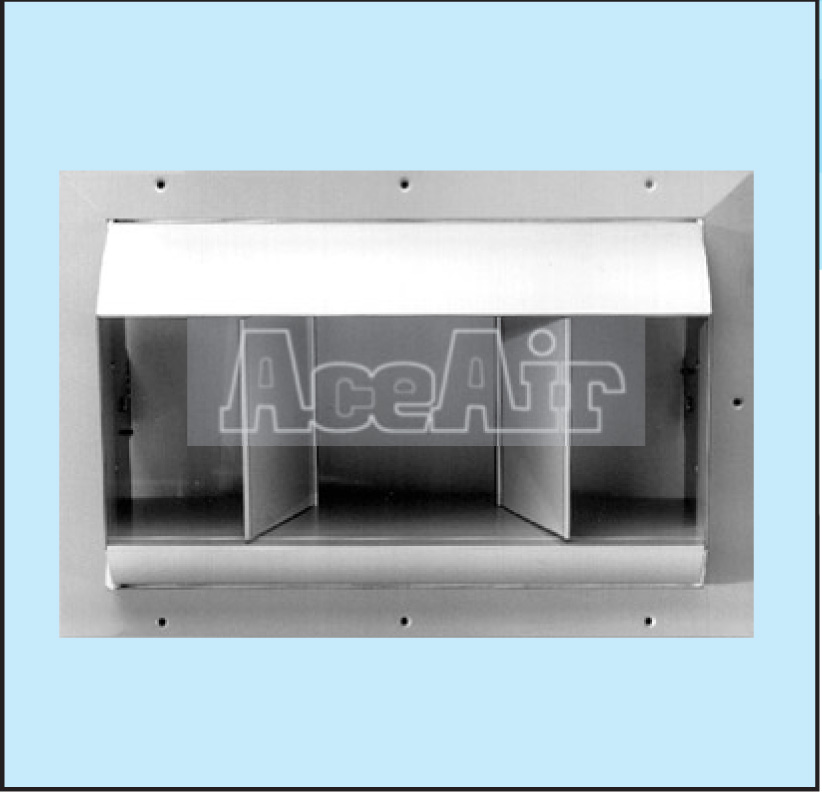

Code: DRD
Name: Drum Jet Diffuser
The DRD drum jet diffuser is designed for long throw applications.

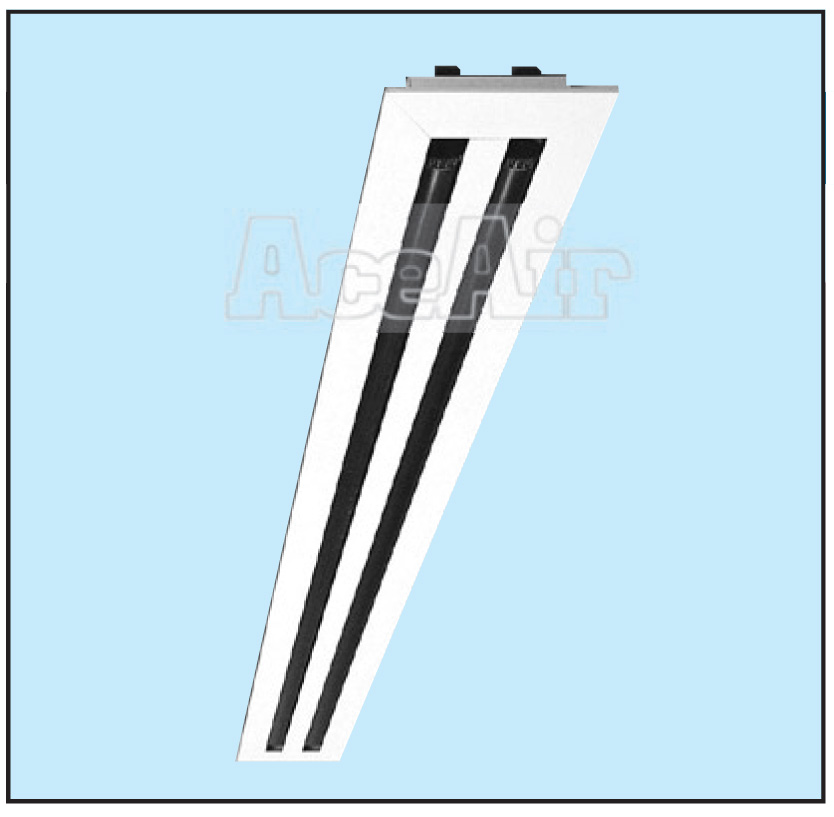

Code: HDLD
Name: Slot Linear Diffuser
For the first time, the Slot Linear Diffuser HDLD is designed with easy adjustable hand rollers which enable adjustment of air pattern and air volume at diffuser face without using any tool or disturbing ceiling.


Code: SSL
Name: Architectural Linear Diffuser
SLL series linear diffuser, with flexible slot width, is designed to meet architectural ceiling applications. It allows a higher airflow than the conventional linear diffusers, with lower noise level. The adjustbale air pattern controller provides horizontal and vertical air pattern. This Unit is available in straight and curved section to meet designer's requirement.


Code: LFPD
Name: Laminar Flow Diffuser
The Laminar Flow Diffuser is a perforated face diffuser suitable for application such as clean rooms, laboratories and operation theatres where it is generally necessary to introduce a stable, low velocity air stream into the occupied zone without entraining room air. The diffusers are manufactured in two standard sizes to suit 600mm and 1200mm ceiling grid systems.


Code: JTC
Name: Swirl Diffuser
The JTC swirl diffuser consist of radially arranged air control blades is suitable for ceiling mounting.


Code: RD/P
Name: Round Pan Diffuser
The RD/P is an architectural designed circular ceiling diffuser.


Code: SFRD
Name: Square Frame Round Diffuser
The SFRD/SCRD is a circular ceiling diffuser with a graceful exterior, designed with a machine mould formed square frame to suit standard tile size suspended ceiling.


Code: PL
Name: Punkah Louvre
PL a type of multiple direction air diffuser with accessible external volume control.


Code: 0000
Name: Supply Air Grilles
The DVH and DHV double deflection supply air grilles or wall registers are suitable for most commercial applications and can be utilised in exposed duct, ceiling or side wall situation.


Code: 0000
Name: Square Ceiling Diffuser
The JC multicore square ceiling diffuser is a versatile form of air terminal offering 1 to 4 way horizontal air diffusion patterns.


Code: RD
Name: Round Ceiling Diffuser
The RD round ceiling diffuser is a ceiling diffuser with a graceful exterior.


Code: 0000
Name: Return / Exhaust / Fresh Air Grille
FL/FB/EG grilles are designed to use in return, exhaust or fresh air applications.


Code: 0000
Name: Linear Bar Grille
These grilles are designed for supply and return air application and are suitable for sidewall, sill or flooring mounting.


Code: 0000
Name: Light Troffer Diffuser
ALT diffusers are designed for supply air diffusion through inconspiciuous slot of air handling fluorescent light troffers. They are easily attachable to existing light troffer.


Code: 0000
Name: TRS
Supply Air Diffuser for Large Space


Code: 0000
Name: HDLD
The Slot Linear Diffuser HDLD is designed with easy adjustable hand rollers.
